API Pipe Base Screen Perforated Sand Filter water well screen pipe

FOB Reference Price:Get Latest Price
US $10-15 / Meters | 10 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Material:
Stainless Steel Wire, Low Carbon,LCG,Steel treated with plastic spraying,SS(304,etc))
Type:
Welded Mesh
Application:
Filters
Weave Style:
welded
Wire Diameter:
3-10
Technique:
Welded Mesh
Model Number:
AKSG1410152
Brand Name:
Aokai
Slot size:
customized as request,open area up to 60%
Length:
up to 6 meters
Diameter:
from 25mm to 1300mm
End Connection:
Plain beveled ends for butt welding or threaded
Note:
Other wires and robs available upon request
SupplyAbility
SupplyAbility:
8000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
as per customer's requirement
Port
Tianjin Xingang
Lead Time :
10days

Aokai manufactures an extensive range of sand control screens and filtration products including wire wrapped screens, pipe base screens, perforated casings, slotted liners, precise punched slot screens, etc., which are used in various fields such as oil and gas industry, water wells, water supply and treatment, power supply, and industrial and environmental applications. By investing in advanced technology and quality assurance processes, our manufacturing expertise can design and deliver tighter tolerances and greater precision, giving you screen products you can trust in the harshest environments.



Product Description



Pipe Base Screen (also known as Wrap On Pipe Screen) is a wire-wrapped screen constructed directly onto the base pipe. Bringing together the latest machine technology and an optimized wire design, AOKAI Pipe Base Screen is a screen product with best-in-class performance. It has longitudinal ribs that support the wrap wire and function as a drainage layer, ensuring an open flow path to the base pipe perforations. Not only the wire is wrapped tightly around the base pipe, but also the combination achieves additional strength when the wire is welded to the ribs and the cooling process shrinks the wire around the pipe. The base pipe perforations are designed to optimize flow while retaining strength.



Features & Benefits

1. A diverse range of wire dimensions and configurations for specific requirements

2. Self-cleaning and maximum flow

3. Complete range of slot sizes, and pipe hole diameters

4. Alloys available as required

5. Screen attached to base pipe method providing maximum strength to withstand significant amounts of compression, torque, and thermal strain

6. Resistance against inherent damage due to the process of directly wrapping to base pipe



Applications

1. Heavy oil, sand oil, SAGD, CBM, bitumen, thermal

2. Water injection

3. Horizontal, vertical , deviated oil and gas, and water wells

4. Stand-alone operations, cased hole, open hole environments and horizontal completions

5. Horizontals with high angle

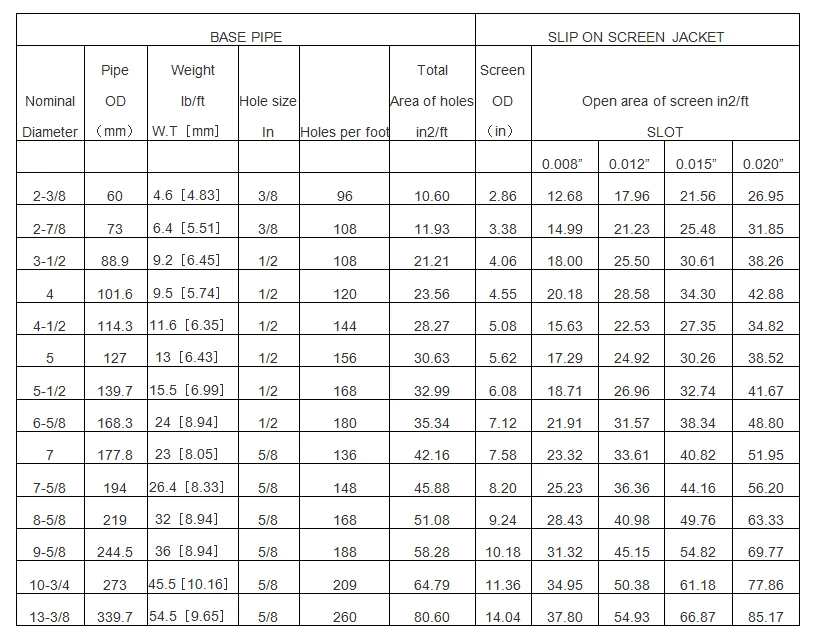

Pipe Base Screen Technical Data:





Detailed Images







Advantages







Certifications

We have been striving to ensure our product quality and customer satisfaction and even exceed their expectation. Our quality management system is certified to ISO9001:2000, GB/T19001-2008/ISO9001:2008. We use a set of programs and processes to monitor and improve our products and services including parts selection standard, manufacturing traceability reports, internal tests, and internal process audits, etc.
